In enterprise WAN environments, not every network segment should have unrestricted access to every other segment. However, many isolated segments still need access to a small set of shared services, such as DNS, Active Directory, RADIUS, monitoring systems, or internal application platforms.

our Senario:

• VPN 10
• VPN 20
• VPN 30 = Shared Services

your goal is:

• VPN 10 can reach services in VPN 30
• VPN 20 can reach services in VPN 30
• VPN 10 and VPN 20 cannot reach each other

For a shared services VPN:

• the consumer VPNs import the shared service routes
• the shared services VPN imports the consumer routes only if services need to initiate or reply to them
• the consumer VPNs should not import each other’s routes

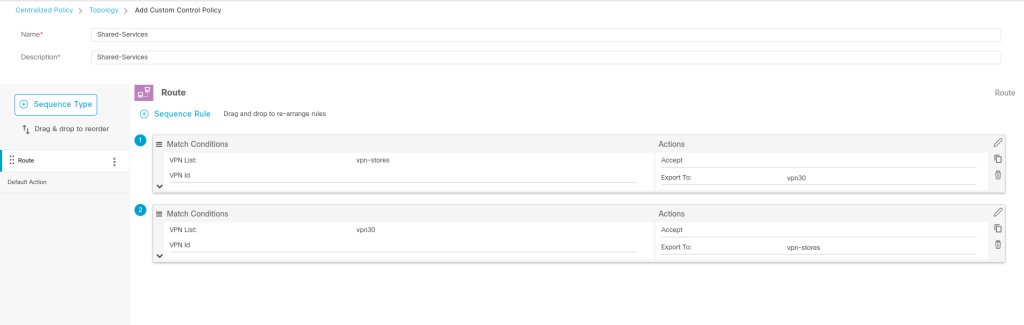

We should make a Topology policy and export the routes to other vpns:

BUT if we export all routes of VPN 30 back to both VPN 10 and VPN 20 without filtering, and VPN 30 learns routes from both, then we can accidentally create transit behavior.

Meaning:

• VPN 10 routes go into VPN 30
• VPN 20 routes go into VPN 30
• then VPN 30 may export learned routes back out

And suddenly:

VPN 10 may learn VPN 20 or VPN 20 may learn VPN 10

And that is exactly what we do not want.

We can solve this problem with adding an atribute from Shared service vpn during exporting, so that only shared service network be exported to other vpns.

Here I use Prefix-list for that:

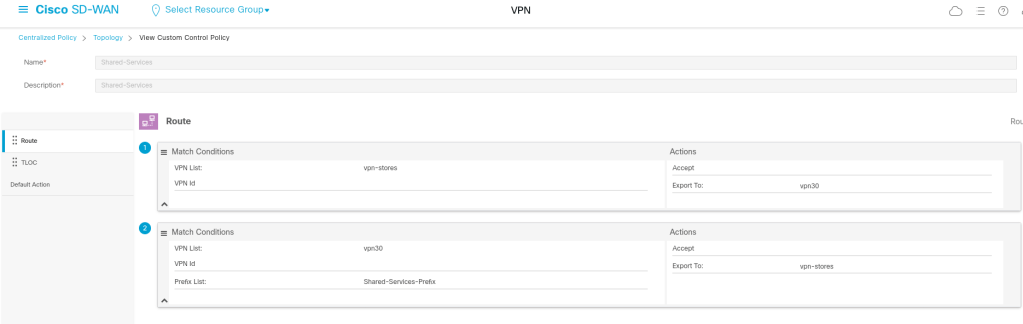

And the policy should be applied in inbound direction of vsmart:

viptela-policy:policy
 control-policy Shared-Services
    sequence 1
     match route
      vpn-list vpn-stores
      prefix-list _AnyIpv4PrefixList
     !
     action accept
      export-to vpn-list vpn30
     !
    !
    sequence 11
     match route
      vpn-list vpn30
      prefix-list Shared-Services-Prefix
     !
     action accept
      export-to vpn-list vpn-stores
     !
    !
    sequence 21
     match tloc
     !
     action accept
     !
    !
  default-action accept
 !
 lists
  prefix-list Shared-Services-Prefix
   ip-prefix 172.21.21.0/24
  !
  site-list Hub-list
   site-id 100
  !
  vpn-list vpn-stores
   vpn 10
   vpn 20
  !
  vpn-list vpn30
   vpn 30
  !
  prefix-list _AnyIpv4PrefixList
   ip-prefix 0.0.0.0/0 le 32
  !
 !
!

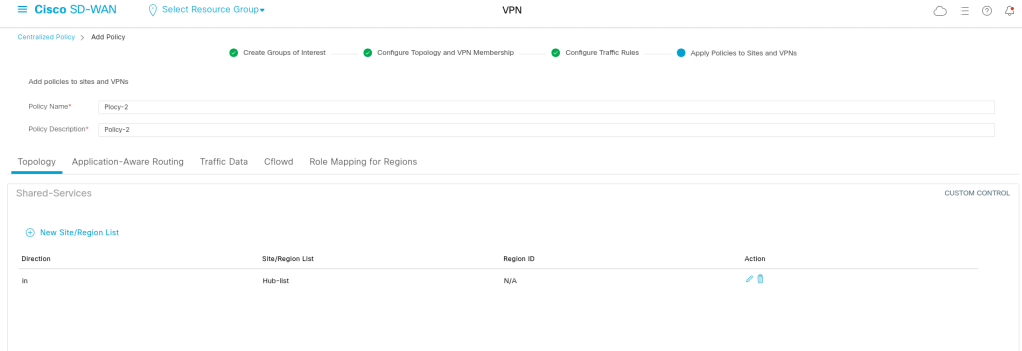

apply-policy
 site-list Hub-list
  control-policy Shared-Services in
