In modern enterprise WANs, not all traffic should go directly from a branch to the internet or to internal applications without inspection. Even in an SD-WAN architecture, organizations often need to enforce security perimeters by steering selected traffic through centralized security services such as firewalls, IDS/IPS, secure web gateways, or traffic inspection platforms.

Cisco SD-WAN provides this capability through Service Insertion, which allows the network to redirect traffic toward a specific security device or service path before it reaches its final destination.

Service Insertion in Cisco SD-WAN is a method of redirecting selected traffic to a designated service node before forwarding it to the final destination.

That service node can be:

• a firewall
• an IDS/IPS
• a secure web gateway
• a proxy
• or another security appliance

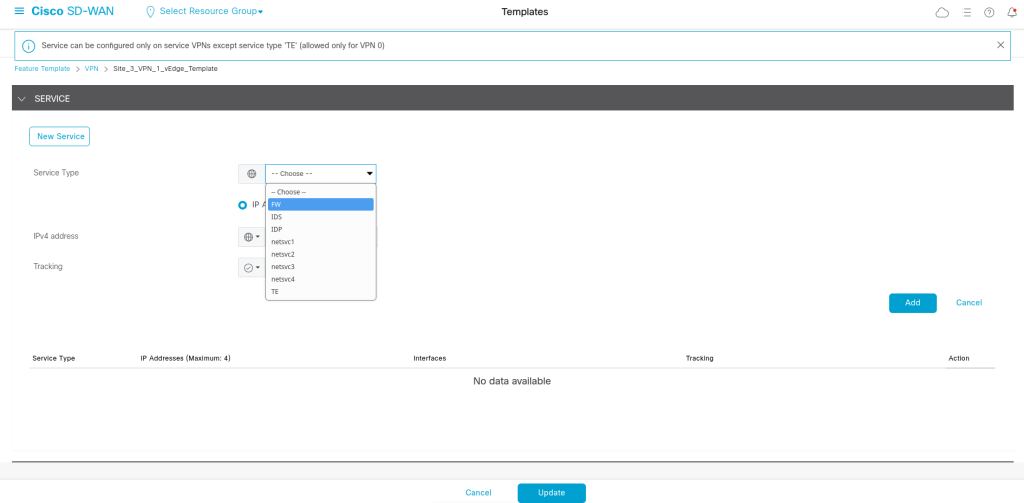

On the edge device which is providing the service (here DC) we should configure the service in feature template of that vpn:

We have 2 options here:

IP = the service is reached via a next-hop IP

Interface = the service is directly connected to a specific interface

We can use tracking so the SD-WAN edge knows whether the firewall is reachable. That way if the firewall dies, the service can be considered unavailable.

We can also use tracking so the SD-WAN edge knows whether the firewall is reachable.

That way if the firewall dies, the service can be considered unavailable.

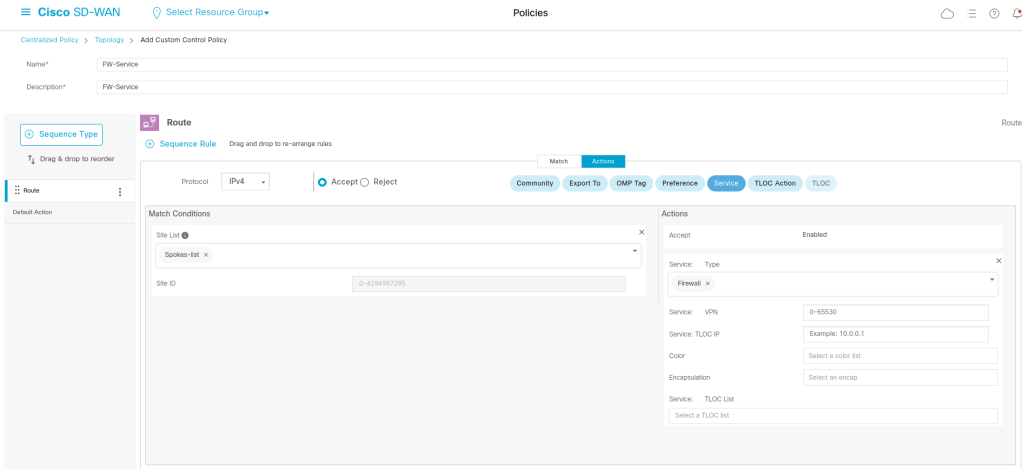

viptela-policy:policy
 control-policy Fw-Service

  sequence 1
   match route
    site-list Spokes-list
    prefix-list _AnyIpv4PrefixList
   !
   action accept
    set
     service Fw
   !
  !
 !
 default-action reject
!

lists
 site-list Spokes-list
  site-id 1001-1003
 !

 prefix-list _AnyIpv4PrefixList
  ip-prefix 0.0.0.0/0 le 32
 !
!
!

apply-policy
 site-list Spokes-list
  control-policy Fw-Service out
